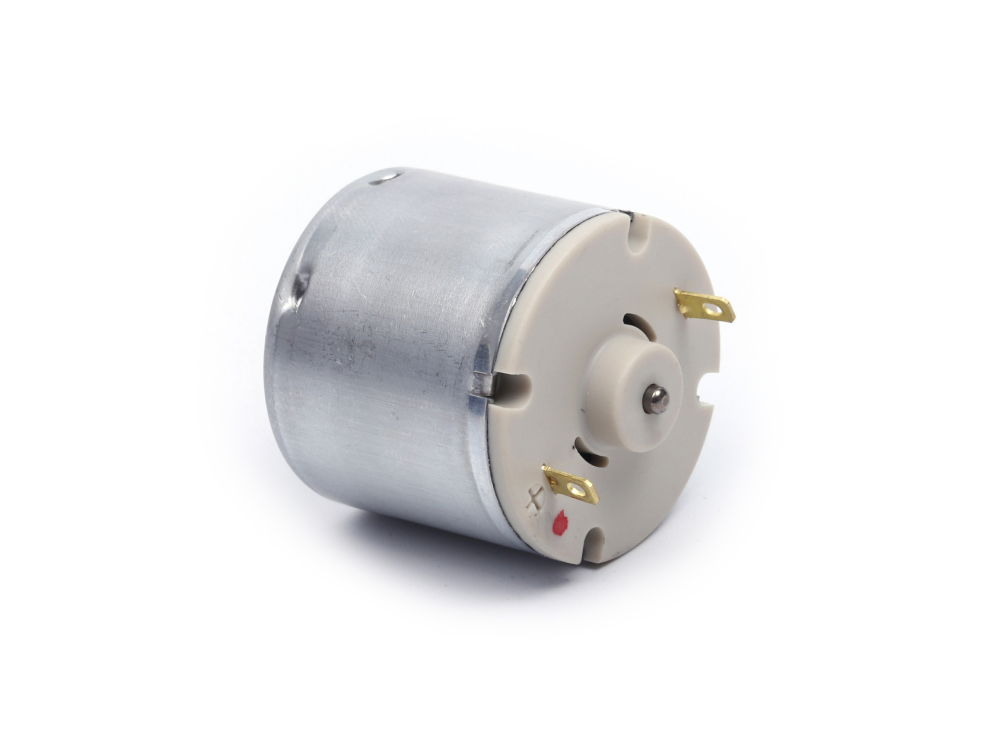

24V 7000rpm 71 gf·cm 4.4W Φ32×29.3mm Bruhsed DC Motor
In Stock: 756 DC-528 24V7000
756 in stock
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
DonCen Motor Advantages
- Available in all plastic or metal versions
- Use of high performance plastic and ceramic materials
- Available with a variety of shaft bearings including sintered, ceramic, and ball bearings
- Modified versions for extended temperature and special environmental conditions are available
- Custom modifications available
Dimensional drawing
Characteristics
Motor Performance characteristics
| Motor Model | DC528-24V7000 | ||
| Manufacturer Part Number | SG010M02-006 | ||
| Motor Type | DC Brushed Motor | ||
| Rated Voltage | V | 24 | |
| No Load Speed | rpm | 7000 | |
| Rated Speed | rpm | 6000 | |
| No-load Current | mA | 80 | |
| Rated Current | mA | 280 | |
| Rated Torque | gf·cm | 71 | |
| Stall Torque | gf·cm | 455 | |
| Rated Power | W | 4.4 | |
Motor Physical Information
| Motor Diameter | mm | 32 | |
| Motor Length | mm | 29.3 | |
| Shaft Diameter | mm | 2.5 | |
| Shaft Configuration | Single / Dual | ||
| Connector | 2 pin | ||
| Motor Weight | g | 71 | |
| Working Lifespan | hours | 300 | |
Motor Design Features
| Housing material | EG steel | ||
| Direction of rotation | CW / CCW | ||
| Number of pole pairs | 2 | ||
| Magnet material | Ferrite | ||
| Enameled wire material | Enameled copper wire | ||
| Insulating paint layer | UEW | ||
| Carbon brush material | Metal graphite brush | ||
Combination
| Gearbox | PG-36 PG-32 SG-37 SR-37 | ||
| Encoder | |||
Characteristic curves
Operating range (based on on ambient 25°C)
For each motor frame size (diameter / length), we present the operating range diagram that relates to the winding of the stock sampleable part. The part number of the stock sampleable part is shown in the diagram below, and the product page of the stock sampleable part, can be found in the ‘related products’ section towards the bottom of the page.
