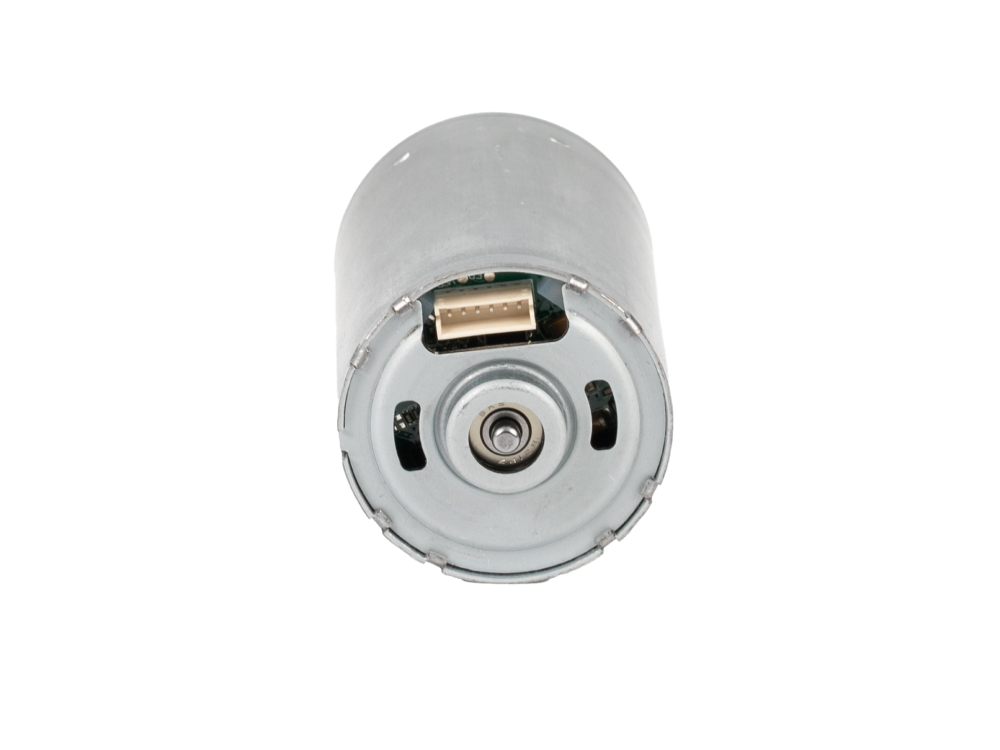

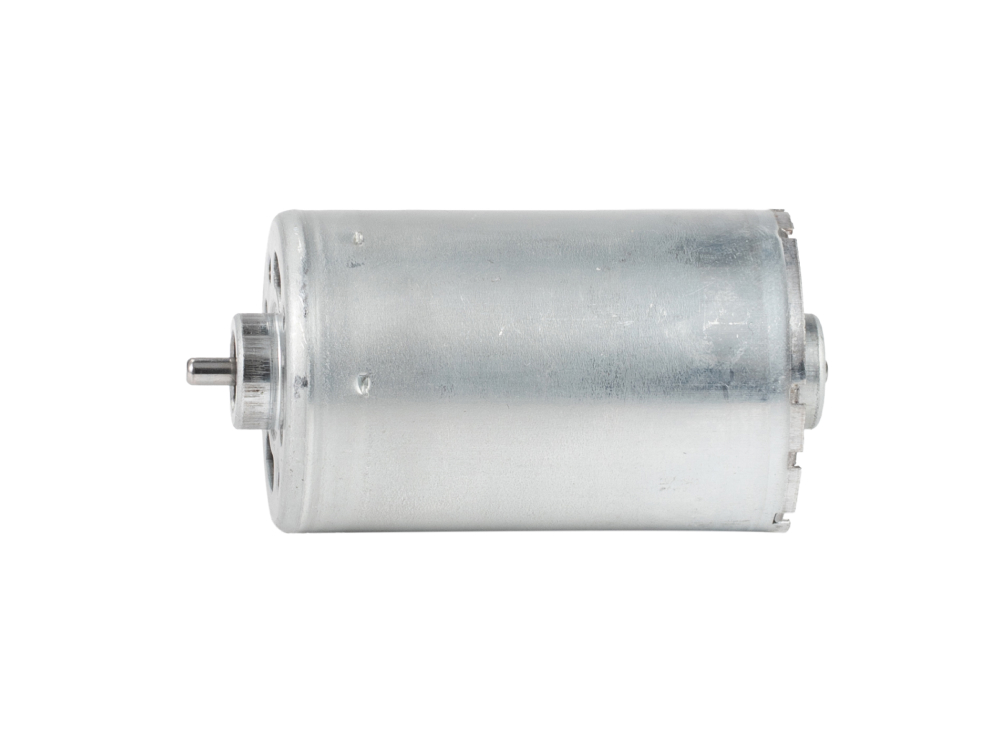

12V 6000rpm 280 gf·cm 13.8W Φ36×57mm Bruhsless DC Motor
In Stock: 5345 BL36-12V6000
5345 vorrätig
Ships within 24 hours!
Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.
Choose a Local Warehouse!
Customers in US, UK, EU, Australia & Russia: Please choose local warehouses first (German warehouse for EU). This ensures faster delivery and avoids customs duties, reducing total costs.
DonCen Motor Advantages
- Available in all plastic or metal versions
- Use of high performance plastic and ceramic materials
- Available with a variety of shaft bearings including sintered, ceramic, and ball bearings
- Modified versions for extended temperature and special environmental conditions are available
- Custom modifications available
Dimensional drawing
Characteristics
Motor Performance characteristics
| Motor Model | BL36-126000 | ||
| Manufacturer Part Number | |||
| Motor Type | DC Brushless Motor | ||
| Rated Voltage | V | 12 | |
| No Load Speed | rpm | 6000 | |
| Rated Speed | rpm | 4930 | |
| No-load Current | A | 0.5 | |
| Rated Current | A | 1.9 | |
| Rated Torque | gf·cm | 280 | |
| Stall Torque | gf·cm | 1676 | |
| Rated Power | W | 13.8 | |
Motor Physical Information
| Motor Diameter | mm | 36 | |
| Motor Length | mm | 57 | |
| Shaft Diameter | mm | 2 | |
| Shaft Configuration | Single / Dual | ||
| Connector | |||
| Motor Weight | g | 230 | |
| Working Lifespan | hours | 5000 | |
| Operating Temperature Range | ℃ | -20-60 | |
| Noise Level @ 30cm | dB | 43 | |
| Noise Level @ 50cm | dB | 38 | |
Motor Design Features
| Housing material | EG steel | ||
| Direction of rotation | Electronically reversible | ||
| Number of pole pairs | 4 | ||
| Number of Phase | 3 | ||
| Magnet material | Nd2Fe14B | ||
| Enameled wire material | Enameled copper wire | ||
| Insulating paint layer | UEW | ||
| Hall Sensor | Sensorless | ||
| Motor Control | 3 phase rectangular wave rectified + PWM | ||
Combination
| Gearbox | PG-36 SG-37 SR-37 | ||
| Encoder | |||
Characteristic curves
Operating range (based on on ambient 25°C)
For each motor frame size (diameter / length), we present the operating range diagram that relates to the winding of the stock sampleable part. The part number of the stock sampleable part is shown in the diagram below, and the product page of the stock sampleable part, can be found in the ‘related products’ section towards the bottom of the page.
